BACK TO PRODUCTS
PROFESSIONAL GRADE

LIXEL L2 PRO

High-Precision Handheld 3D Reconstruction Device

The Lixel L2 Pro is a highly integrated, high-precision handheld 3D reconstruction device that combines LiDAR, visual, and IMU modules with AI to deliver real-time point cloud data that rivals post-processed quality.

LIXEL L2 PRO
LIXEL L2 PRO
Surveyor scanning a plaza overhead with the Lixel L2 Pro

Field capture in dense urban environments

TECHNICAL SPECIFICATIONS

<2cm
ACCURACY
Relative accuracy
120m
RANGE
Effective distance
640K
POINTS/S
Point rate (32ch)
IP54
RATING
Weather protection
1.9kg
WEIGHT
Total weight
1.5hr
RUNTIME
Battery life

FULL SPECIFICATIONS

GENERAL

Dimensions
138mm × 90mm × 381mm
Weight
~1.9kg
Shell Material
Aviation aluminum
Power Input
14.4V
Power Consumption
<30W
Internal Storage
1TB SSD
Operating Temperature
-20°C to 50°C
IP Rating
IP54

LIDAR

Laser Class
Class 1 / 905nm
Laser Lines
16 or 32 (variant)
FOV
360° × 270°
Effective Distance
120m or 300m
Point Rate
320,000–640,000 pts/s
Relative Accuracy
<2cm
Absolute Accuracy
Up to 3cm with RTK

CAMERA

Quantity
3 (2×48MP panoramic)
FOV
190°×190° (panoramic)
Resolution
48MP
Function
Visual positioning and colorization

BATTERY

Type
Removable Li-ion
Capacity
46.8Wh
Charging Time
~2 hours
Operating Time
60–90 minutes

KEY FEATURES

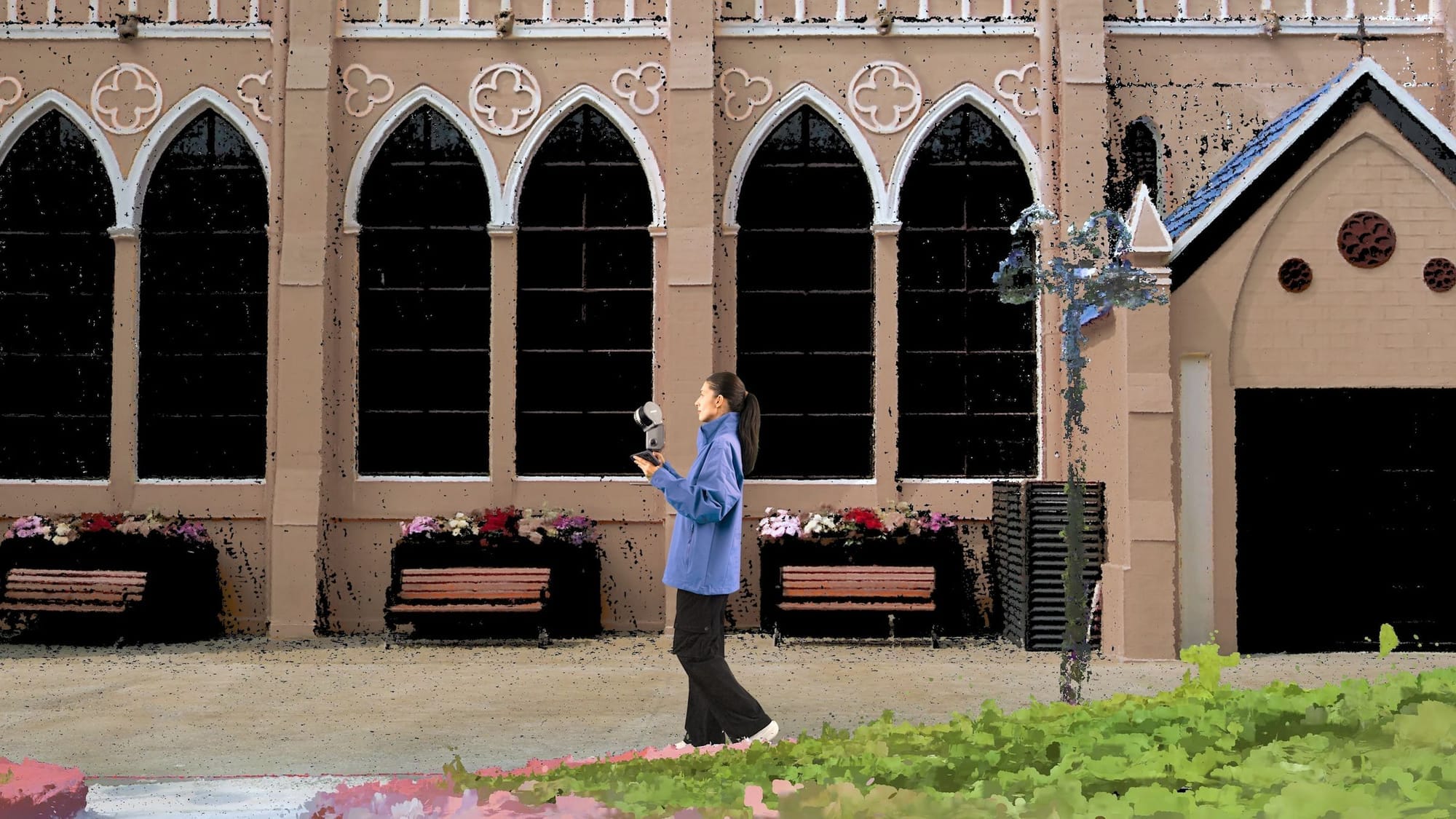

Real-time point cloud reveal of a scanned church facade

Real-time colorized point cloud reconstruction

Real-Time Point Cloud

Generate point clouds with absolute coordinates and coloring that matches post-processing quality in real-time.

LixelUpSample™

Photo-quality color point clouds with 1 million points/m², 1mm spacing, and 5mm thickness.

Multi-SLAM Technology

Rotating LiDAR with dual 48MP panoramic cameras and high-precision IMU for superior positioning.

RTK Integration

Supports RTK module for absolute accuracy up to 3cm and resume from breakpoint functionality.

LixelStudio Software

One-click data processing with 3 lifetime licenses included. Compatible with LixelGo app for live control.

Versatile Mounting

Use handheld, mount on drones (DJI M350/M300 RTK), or attach to vehicles for different workflows.

All-Weather Design

IP54 rating for indoor and outdoor use in temperatures from -20°C to 50°C.

One-Touch Operation

Simple operation with no post-processing needed for many workflows. Just scan and go.

ENGINEERED FOR EXCELLENCE

Utilizing self-developed 3D real-time reconstruction algorithms, it captures high-precision colorized point clouds with one-touch operation. It supports real-time modeling, multi-SLAM technology, and is suitable for applications like topographical mapping, agriculture, forestry surveys, engineering, smart cities, and more. Available in variants: 16-channel (320,000 pts/s, 120m range) or 32-channel (640,000 pts/s, 120m or 300m range). It can be used handheld, mounted on drones (e.g., DJI M350/M300 RTK), or vehicles.

Processing L2 Pro scan data into BIM-ready models

From capture to BIM-ready deliverable

IDEAL APPLICATIONS

Field technician carrying the Lixel L2 Pro on a shoulder rig

Purpose-built for extended field sessions

Topographical Mapping
Agriculture & Forestry
Engineering Surveys
Smart Cities
Construction
Mining
Archaeology
Disaster Response
Lixel L2 Pro mounted on an extension pole for elevated capture

Pole-mounted capture for hard-to-reach areas

READY TO ELEVATE YOUR WORKFLOW?

Contact our team to discuss your specific requirements and get a personalized quote.
