NEXT GEN

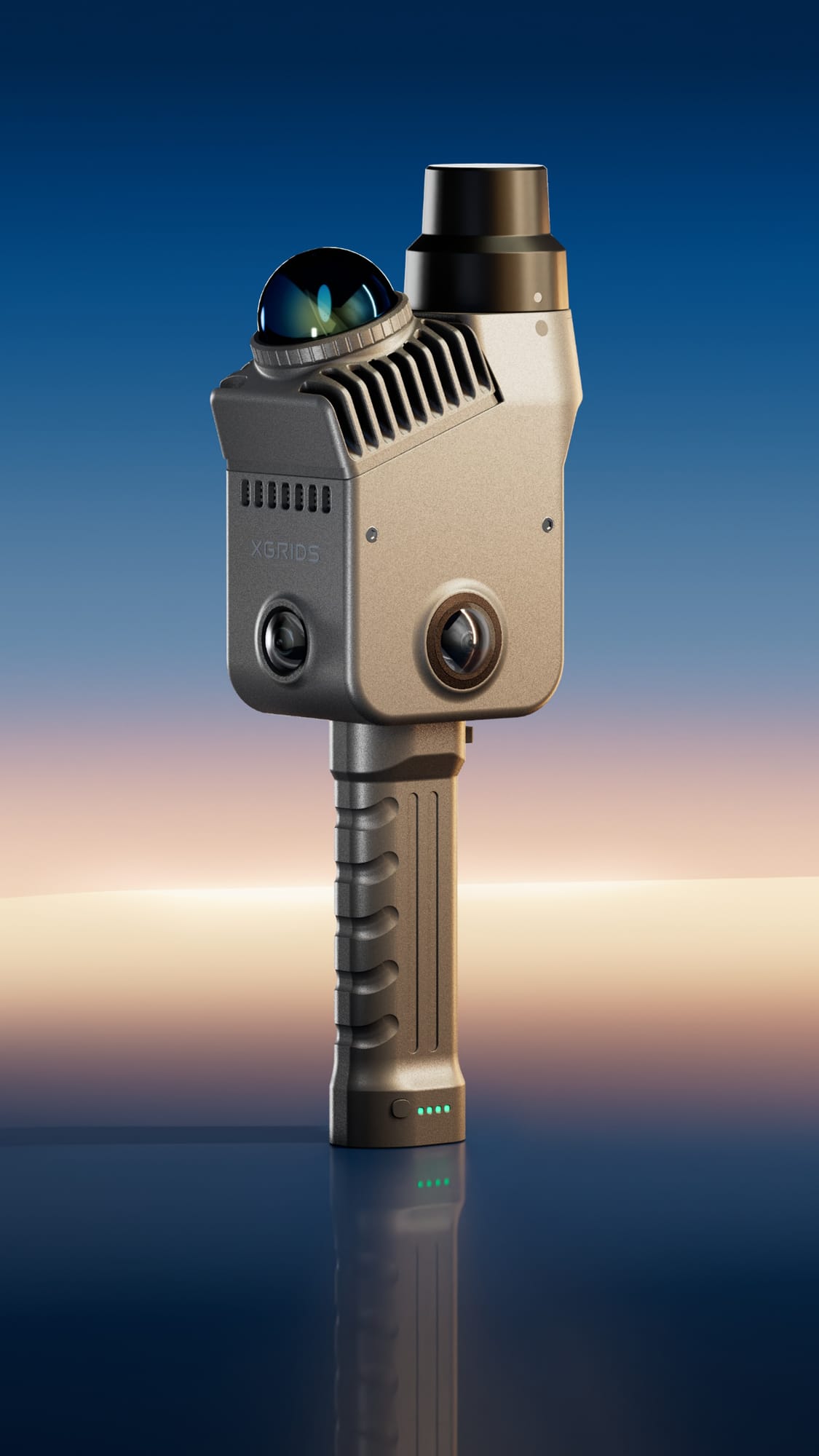

LIXEL K2

Compact Handheld 3D Scanner with Built-In RTK

The Lixel K2 is XGRIDS' next-generation compact handheld scanner, pairing a 100m-range SLAM LiDAR module with a built-in RTK receiver and a triple-camera colorization system for centimeter-accurate reality capture in a 1.2kg body.

Close-up of the Lixel K2 scanner optics and XGRIDS branding

Triple-camera array in tack-sharp detail

TECHNICAL SPECIFICATIONS

1cm

ACCURACY

Relative accuracy RMSE

100m

RANGE

Max scan range

200K

POINTS/S

LiDAR scan speed

IP54

RATING

Weather protection

1.2kg

WEIGHT

Total weight

512GB

STORAGE

Built-in eMMC

FULL SPECIFICATIONS

GENERAL

Dimensions: 93.9mm × 96.3mm × 285.3mm
Weight: ~1.2kg
Shell Material: Aluminum
Internal Storage: 512GB eMMC
Operating Temperature: -20°C to 50°C
IP Rating: IP54
Connectivity: Wi-Fi + Bluetooth

LIDAR

Laser Class: Class 1 / 905nm
FOV: 360° × (-7° to +52°)
Range: 40m @10% reflectivity, 100m max
Scan Speed: 200,000 pts/s
Relative Accuracy: 1cm RMSE
Absolute Accuracy: 3cm RMSE (with built-in RTK)

CAMERA

Quantity: 3 (1 front + 2 fisheye)
Resolution: 12MP, 4000×3000 each
Sensor: 1/2" CMOS
Function: Real-time on-device colorization

BATTERY

Type: Removable Li-ion
Operating Time: ~90 minutes
Charging Time: ~2 hours

KEY FEATURES

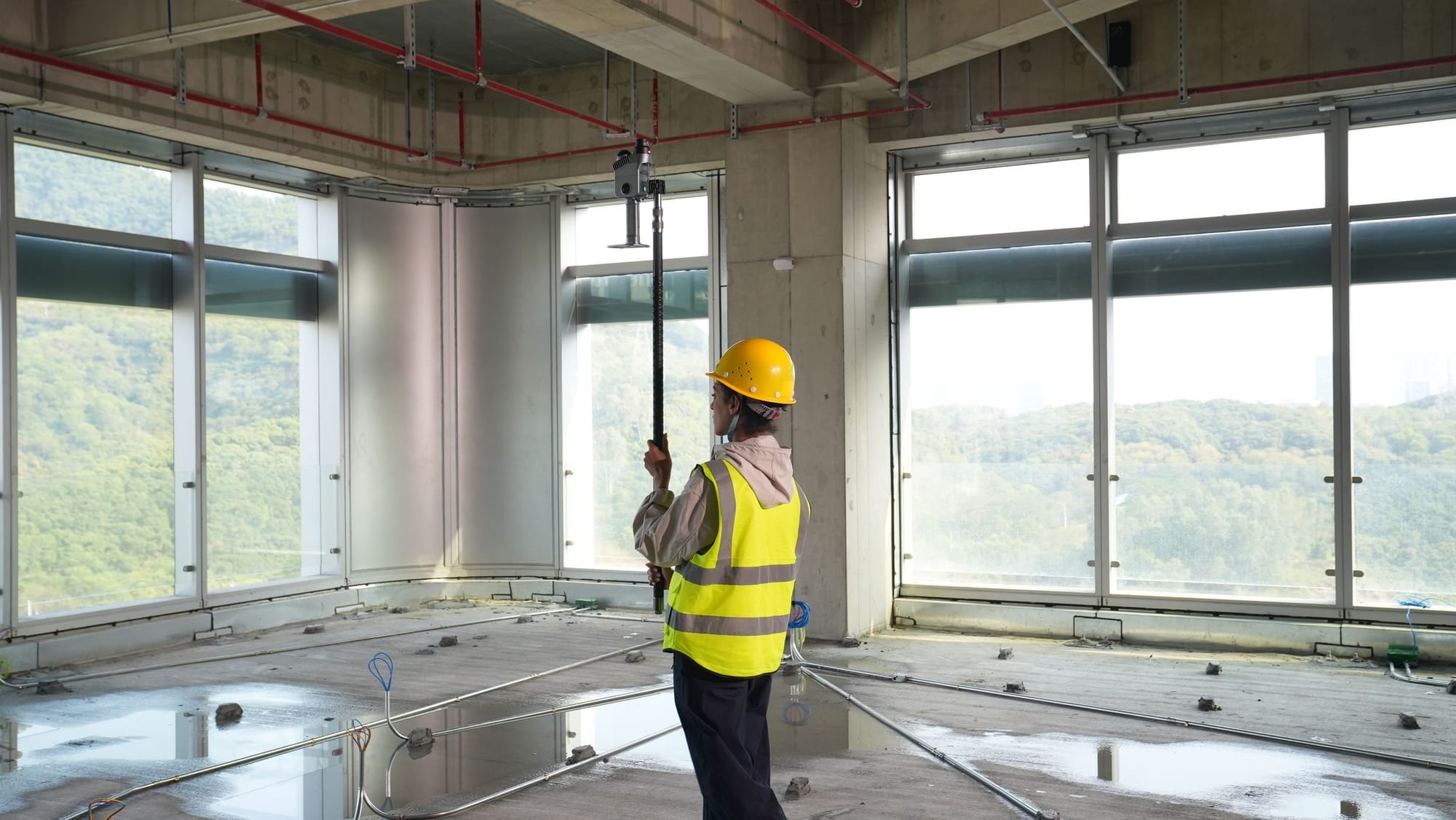

Scanning a ceiling overhead on a construction site

Built-in RTK for jobsite-grade accuracy

Built-In RTK

Integrated UM980 RTK module delivers absolute accuracy to 3cm without an external receiver.

Triple-Camera Array

One forward-facing plus two fisheye 12MP cameras (4000×3000) for true-color point cloud and mesh output.

3D Gaussian Splatting

Native 3DGS output via Lixel CyberColor alongside traditional point cloud, mesh, and imagery formats.

360° SLAM LiDAR

200,000 pts/s scanning across a 360° × -7° to +52° field of view, effective to 100m.

512GB Internal Storage

Built-in eMMC storage, doubling the K1's expandable capacity with no card swaps needed.

Resume Scanning

Visual-aided positioning with resume-from-breakpoint support for flexible field workflows.

LixelGo App

Control scanning, preview captures, and manage settings live from your mobile device.

All-Weather Design

IP54-rated aluminum housing rated -20°C to 50°C for reliable field use.

ENGINEERED FOR EXCELLENCE

The successor to the K1, the K2 adds a third forward-facing camera alongside its dual fisheye lenses, integrates an RTK module (UM980) directly into the unit with no external receiver required, and doubles onboard storage to 512GB of built-in eMMC. Captures can be exported natively as point cloud, mesh, imagery, or 3D Gaussian Splatting via LixelStudio and LCC Studio software. Positioned as XGRIDS' entry-level, compact handheld solution, the K2 is built for small-to-medium reconstructions spanning engineering measurement, heritage documentation, facilities management, and stockpile volumetrics — complementing the higher-capacity Lixel L2 Pro and visual-first PortalCam.
